The ASUS PRIME B760-PLUS D5 is a robust ATX motherboard built for Intel's latest processors, offering DDR5 memory support up to 7200+ MHz and comprehensive connectivity options. With PCIe 5.0, multiple M.2 slots, and extensive USB 3.2 ports, it delivers the performance and expandability needed for modern computing tasks and upgrades.
Key Features
- Intel LGA1700 socket supports 14th/13th/12th Gen Core
- DDR5 memory up to 7200+ MHz, maximum 192GB capacity
- PCIe 5.0 x16 slot with additional PCIe 4.0 expansion
- 3 x M.2 NVMe slots with PCIe 4.0 support
- 2.5Gb Realtek Ethernet and 7.1 HD Audio
- USB 3.2 Gen 2x2 Type-C for fast data transfer
Specifications
| Brand |
ASUS |
| Memory Type |
DDR5 |
| Chipset |
Intel B760 |
| Form Factor |
ATX |
| Processor Socket |
Intel LGA1700 |
| Storage Slots |
3 x M.2 (PCIe 4.0), 4 x SATA |

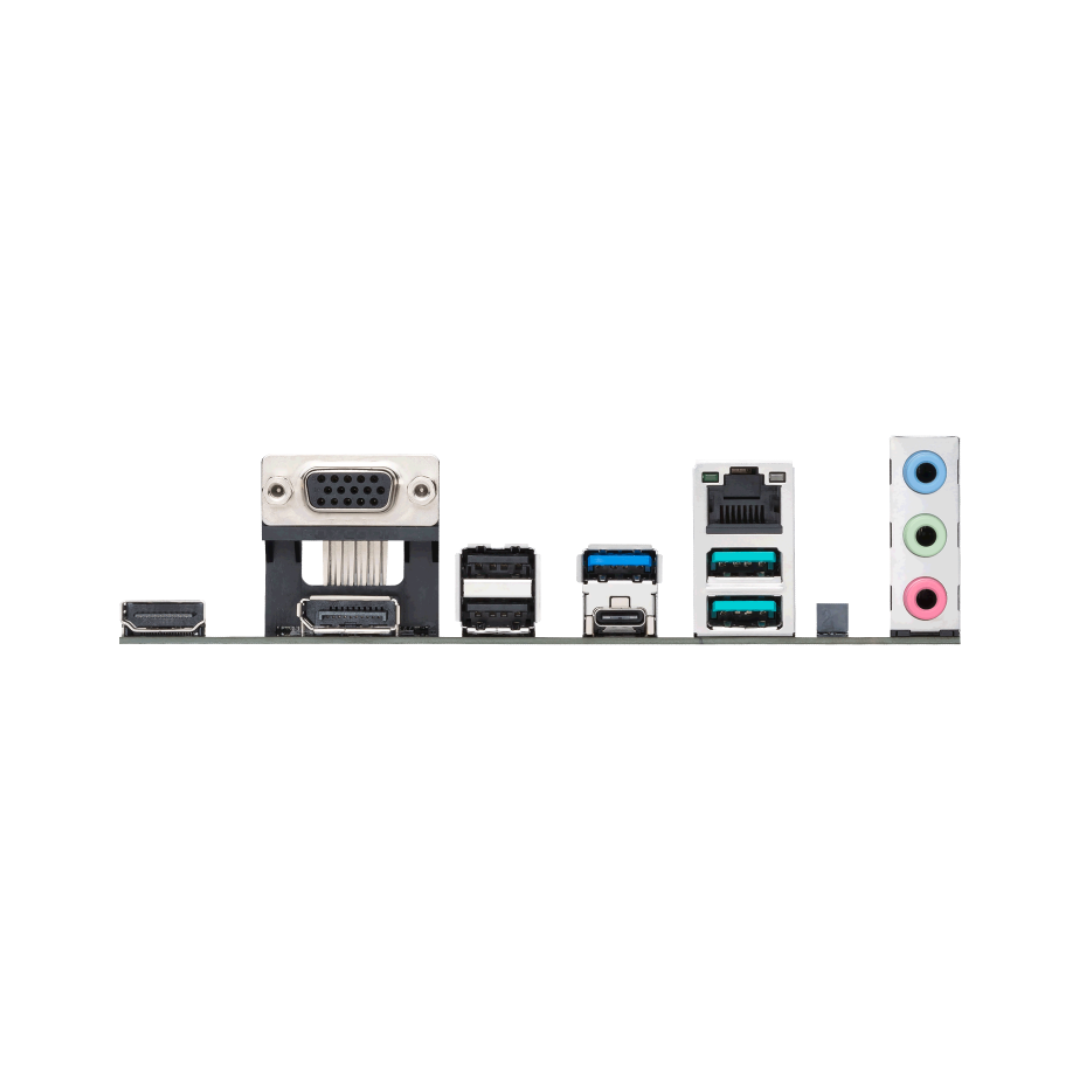

| Graphics Outputs |
HDMI 2.1, DisplayPort 1.4, VGA |
| Ethernet |
Realtek 2.5Gb LAN |
| Audio Codec |
Realtek 7.1 HD Audio |
| Pcie Slots |
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1 |
