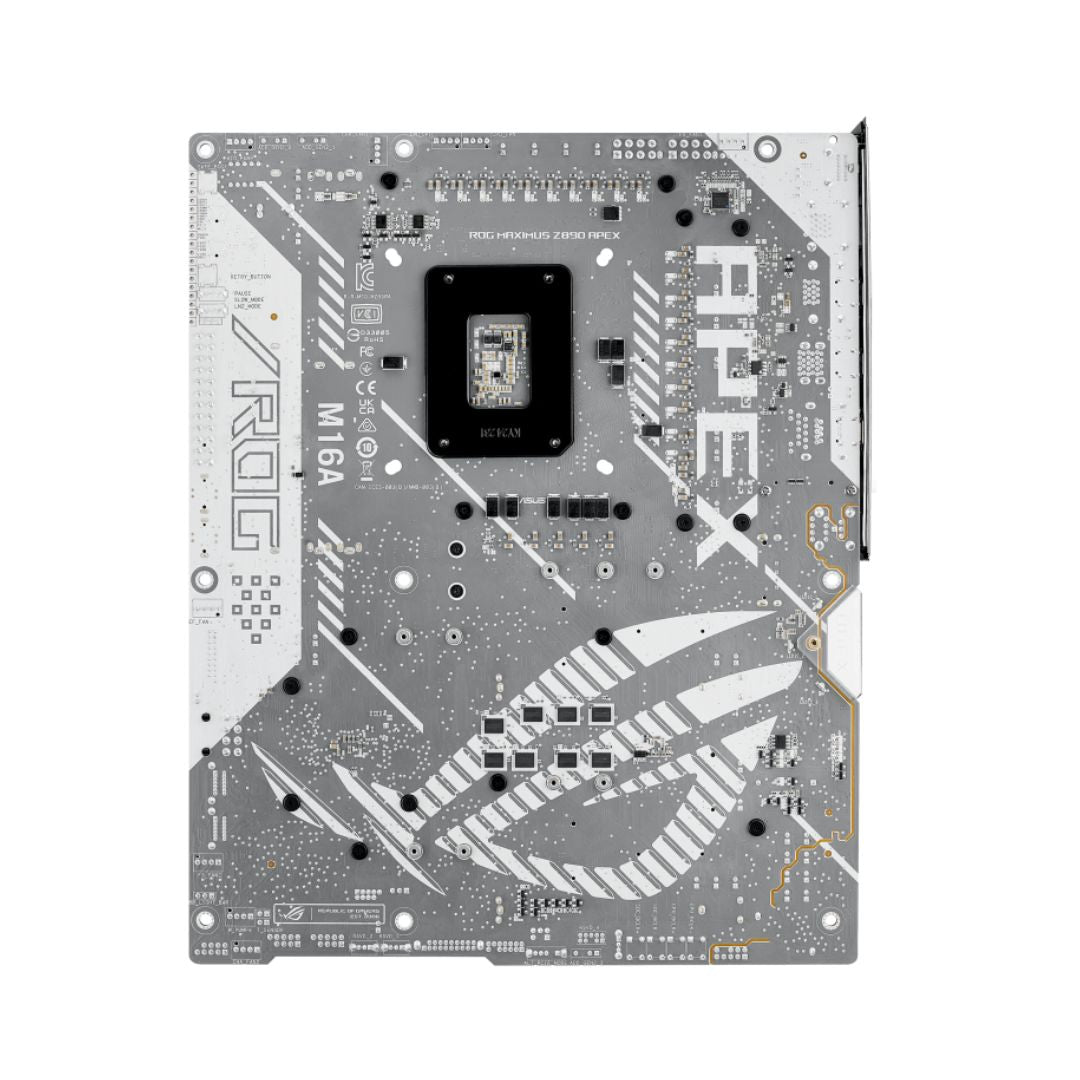

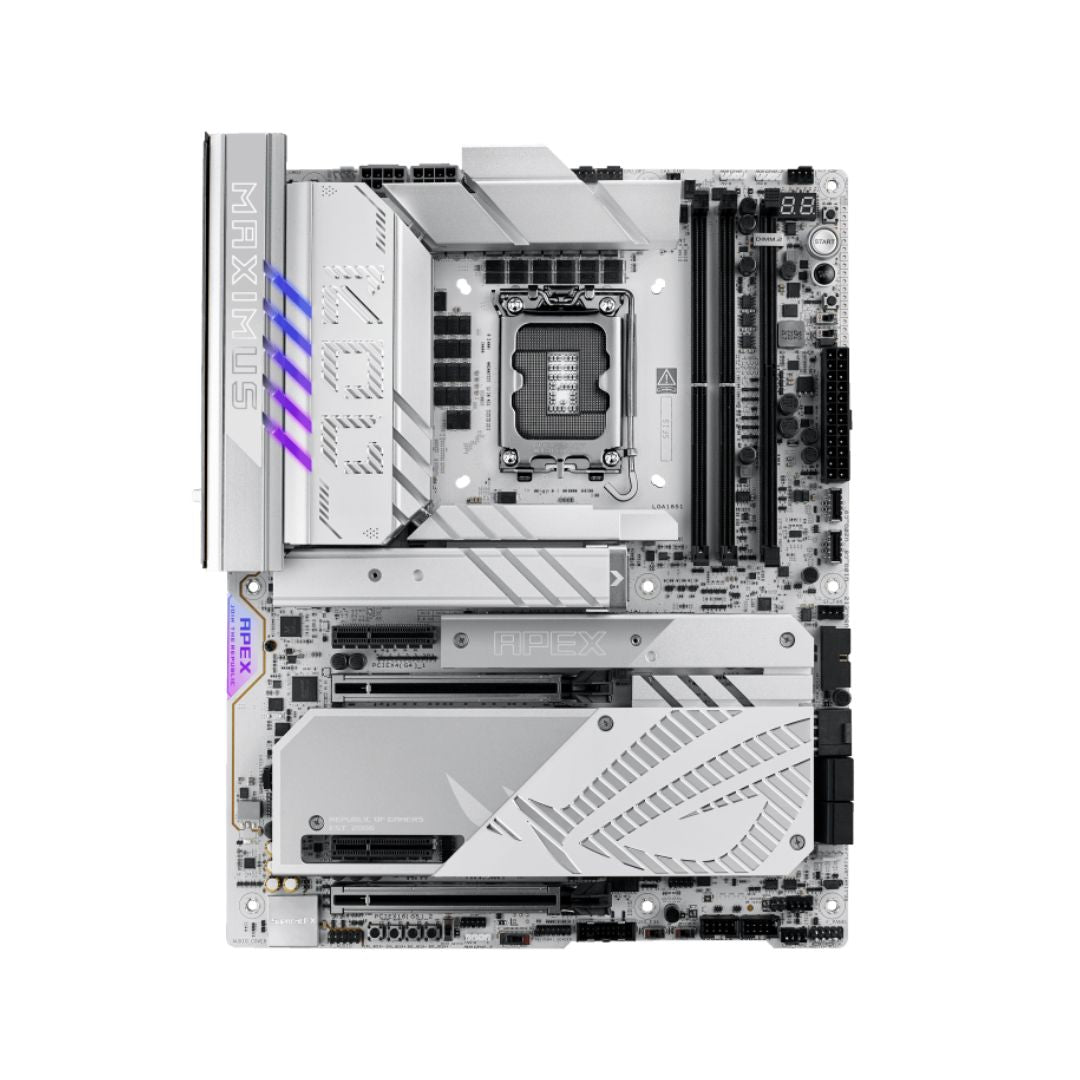

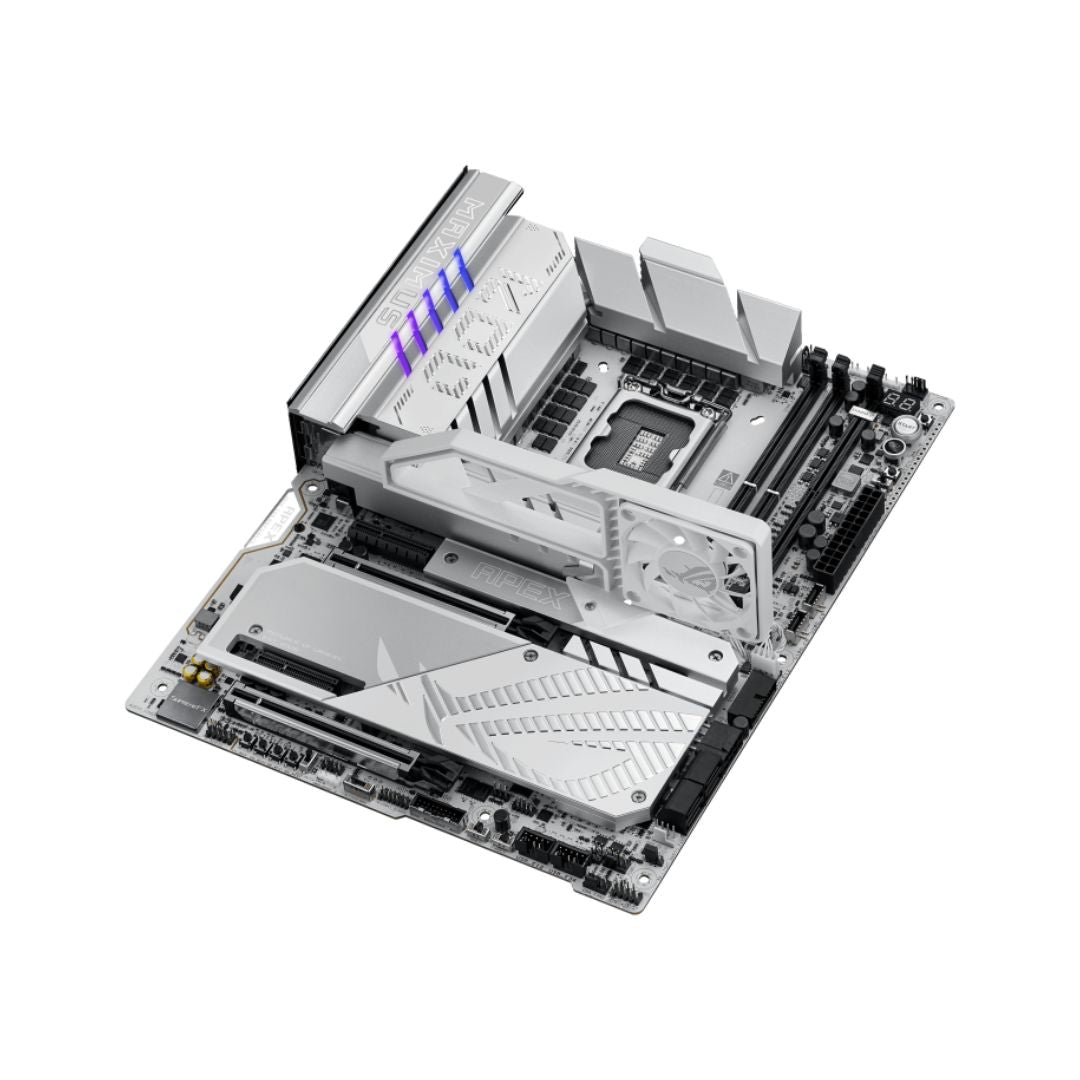

The ASUS ROG MAXIMUS Z890 APEX is a high-end ATX motherboard built for Intel Core Ultra Series 2 processors, featuring PCIe 5.0 slots, Wi-Fi 7 connectivity, and comprehensive M.2 storage options. It delivers premium performance with dual Thunderbolt 4 ports, advanced audio via ROG SupremeFX 7.1, and extensive USB connectivity for demanding workstations and gaming builds.
Key Features
- Supports Intel Core Ultra Series 2 on LGA1851 socket
- PCIe 5.0 slots with DDR5 memory up to 128GB
- Wi-Fi 7 (802.11be) with 5.8Gbps speed
- Dual Thunderbolt 4 ports for high-speed data transfer
- 6 M.2 slots including PCIe 5.0 and PCIe 4.0 options
- ROG SupremeFX 7.1 audio with premium DAC support
Specifications
| Brand |
ASUS |
| Memory Slots |
2 x DDR5 DIMM |
| Max Memory |
128GB |
| Memory Speed |
Up to DDR5 9600+ MT/s OC |
| Pcie Gen5 Slots |
2 x PCIe 5.0 x16 |
| Pcie Gen4 Slots |
2 x PCIe 4.0 x4 |
| M2 Slots |
6 total (M.2_1 PCIe 5.0, M.2_2 PCIe 4.0, M.2_3/4 PCIe 5.0, DIMM.2_1/2 PCIe 4.0) |
| Sata Ports |
4 x SATA 6Gb/s |
| Ethernet |
1 x 5Gb Realtek LAN |
| Wifi Standard |
Wi-Fi 7 (802.11be) 2x2 |
| Bluetooth Version |
Bluetooth 5.4 |
| Thunderbolt Ports |
2 x Thunderbolt 4 |
| Usb 20gbps |
2 x USB 20Gbps Type-C |
| Usb 10gbps |
5 x USB 10Gbps |
| Usb 5gbps |
8 x USB 5Gbps |
| Audio Codec |
Realtek ALC4080 with Savitech AMP |
| Audio Output |
7.1 channel, 32-bit/384kHz |
| Form Factor |
ATX 30.5cm x 24.4cm |
