Gigabyte Z890 UD | Motherboard

Gigabyte Z890 UD | Motherboard

326,000 IQD
326,000 IQD
Sale Sold out

The Gigabyte Z890 UD is a robust ATX motherboard built on the Intel Z890 chipset, delivering exceptional connectivity and storage flexibility. It supports Intel Core Ultra Processors via LGA1851 socket, accommodates up to 256GB DDR5 memory with speeds reaching 9200MT/s, and features PCIe 5.0 support for maximum performance expansion.

Perfect for builders and professionals who demand reliable platform stability, extensive I/O options, and future-proof storage capabilities. Ideal for workstations, gaming systems, and content creation builds requiring multi-drive configurations and high-speed data transfer.

Key Features

  • Intel Z890 chipset with LGA1851 socket support
  • Up to 256GB DDR5 memory at 9200MT/s (OC)
  • PCIe 5.0 M.2 slots and PCIe 5.0 x16 expansion
  • 2.5GbE Ethernet with dual USB4 and DisplayPort 2.1
  • 4 SATA + 4 M.2 storage with RAID support
  • Realtek 7.1-channel HD Audio with S/PDIF output

Specifications

Brand GIGABYTE
Processor Socket LGA1851
Chipset Intel Z890 Express
Memory Type DDR5
Memory Slots 4 x DIMM
Memory Max Capacity 256GB
Memory Speed Up to 9200MT/s (OC)
Memory Features XMP, CUDIMM, ECC (non-ECC mode) supported
Storage M2 Cpu 2 x M.2 (PCIe 5.0 x4, PCIe 4.0 x4)
Storage M2 Chipset 2 x M.2 (PCIe 4.0 x4, PCIe 4.0 x4/SATA)
Storage Sata 4 x SATA 6Gb/s
Raid Support RAID 0/1/5/10
Pcie Slots 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4
Lan Realtek 2.5GbE

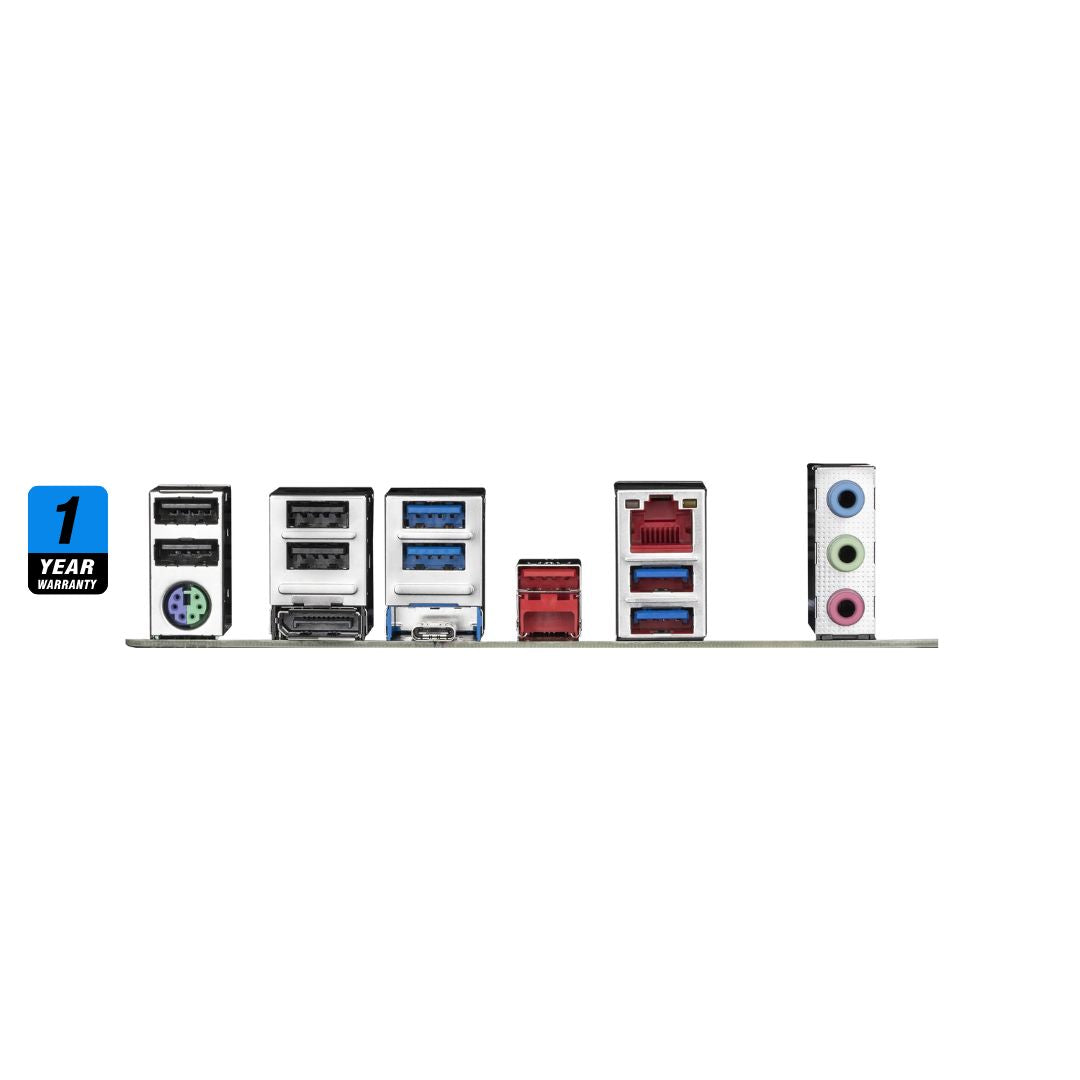

Usb Ports Back 1 x USB4 Type-C, 1 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1, 4 x USB 2.0
Display Outputs 1 x USB4 Type-C (up to 3840x2160@144Hz), 1 x DisplayPort 2.1 (up to 3840x2160@144Hz)
Audio Realtek HD Audio 7.1-channel with S/PDIF Out
Form Factor ATX (30.5cm x 24.4cm)
Power Connectors 2 x 8-pin + 1 x 24-pin
