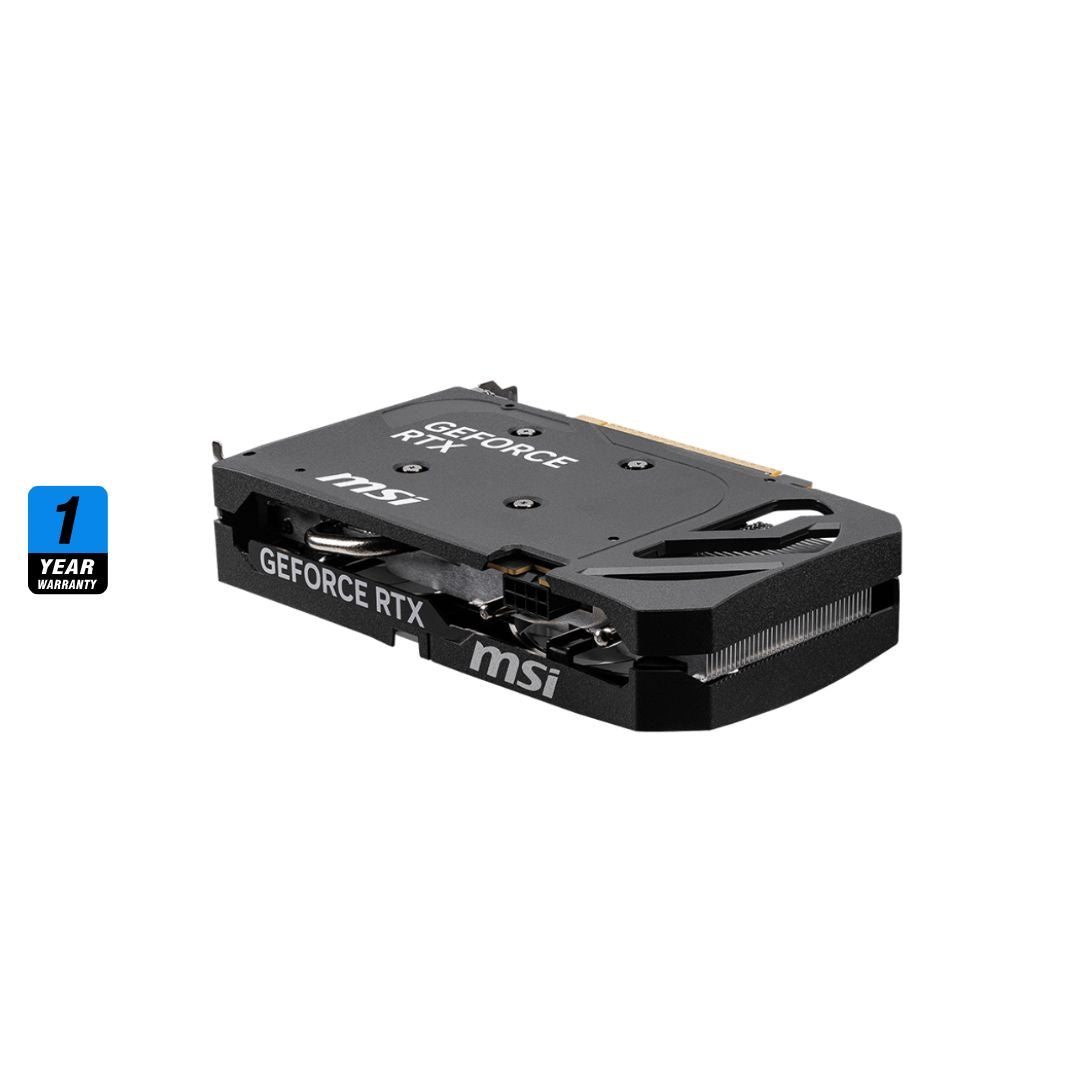

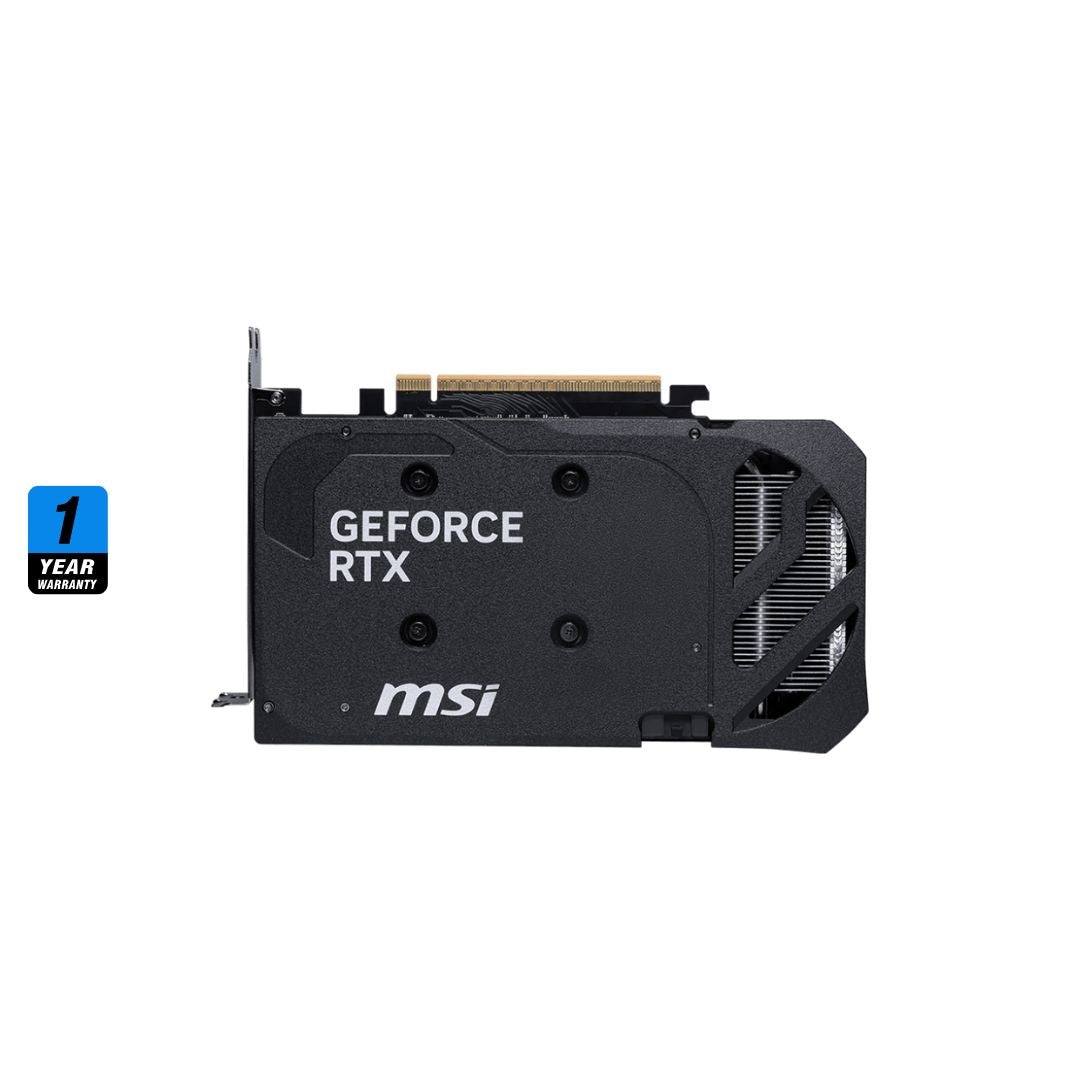

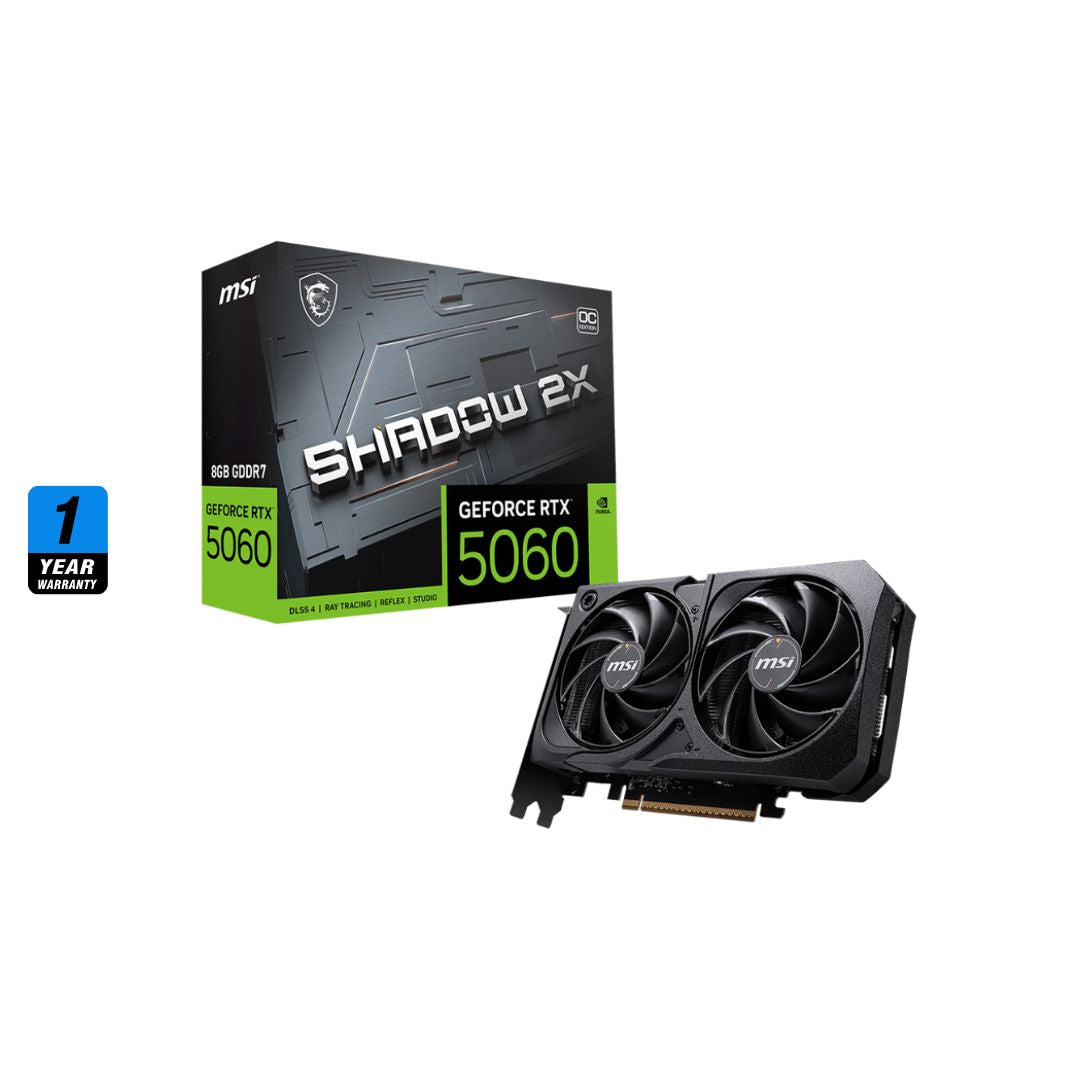

The MSI GeForce RTX 5060 SHADOW 2X OC delivers smooth 1080p and 1440p gaming with 8GB of fast GDDR7 memory, 3840 CUDA cores, and boost clocks up to 2535 MHz. Its dual-fan SHADOW 2X cooling keeps temperatures in check, while PCIe Gen 5 support and DisplayPort 2.1b outputs ensure modern connectivity. With a modest 145W draw, it pairs well with a 550W PSU.
Key Features
- 8GB GDDR7 memory at 28 Gbps
- 3840 CUDA cores for fast rendering
- Boost clock up to 2535 MHz

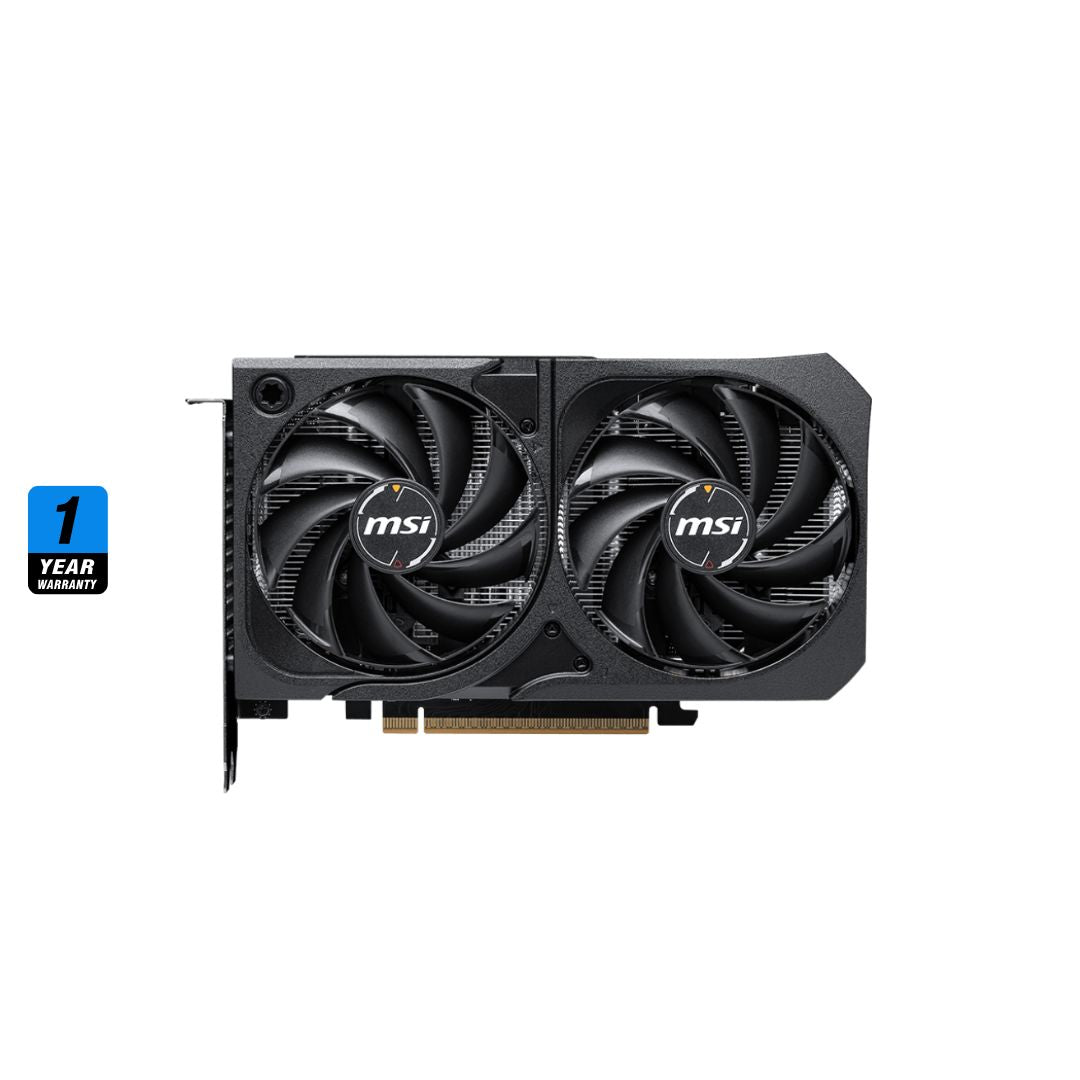

- Dual-fan SHADOW 2X cooling
- PCIe Gen 5 with DisplayPort 2.1b
- Low 145W power consumption
Specifications
| Brand |
MSI |
| Memory Size |
8GB GDDR7 |
| Memory Speed |
28 Gbps |
| Memory Interface |
128-bit |
| CUDA Cores |
3840 |
| Boost Clock |
2527 MHz |
| Core Clock |
2535 MHz (OC) |
| PCIe Standard |
PCIe Gen 5 x16 (x8) |
| Cooling |
SHADOW 2X dual-fan |
| Max Resolution |
7680 x 4320 |
| Power Requirement |
145 W |
| Recommended PSU |
550 W |
| Power Connectors |
8-pin x 1 |
| Outputs |

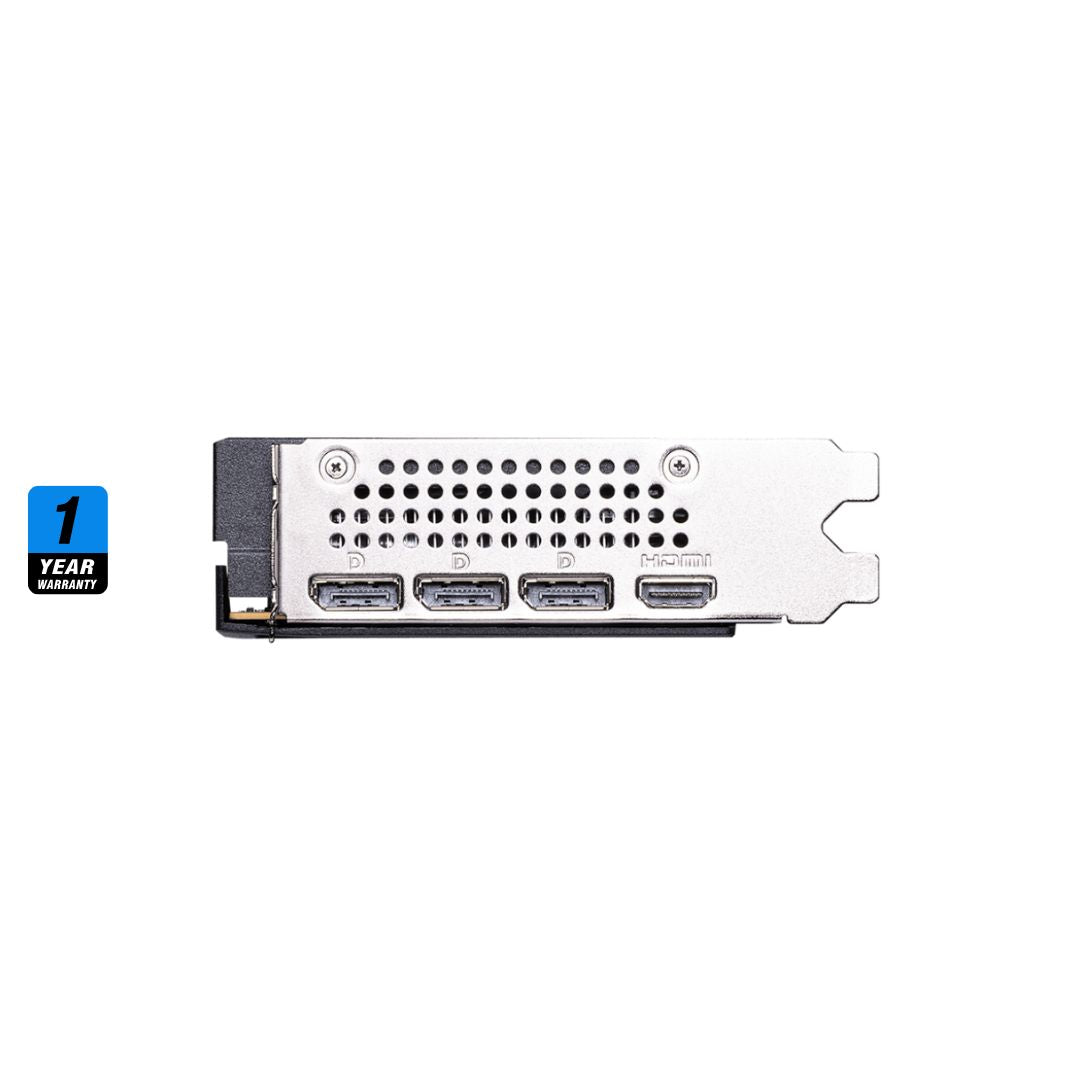

3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Directx Support |
12 Ultimate |
| Opengl Support |
4.6 |
| Card Dimensions |
197 x 120 x 40 mm |
