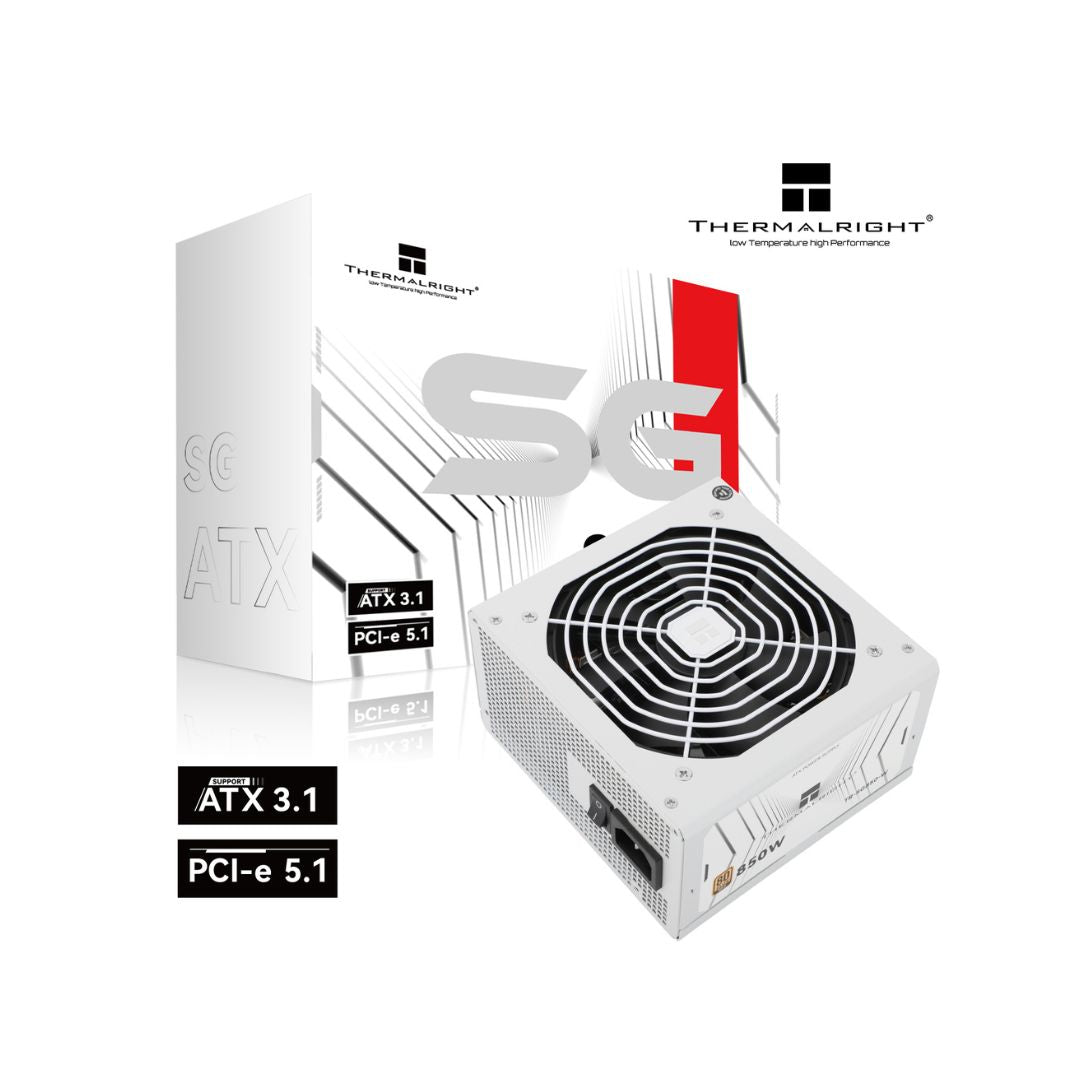

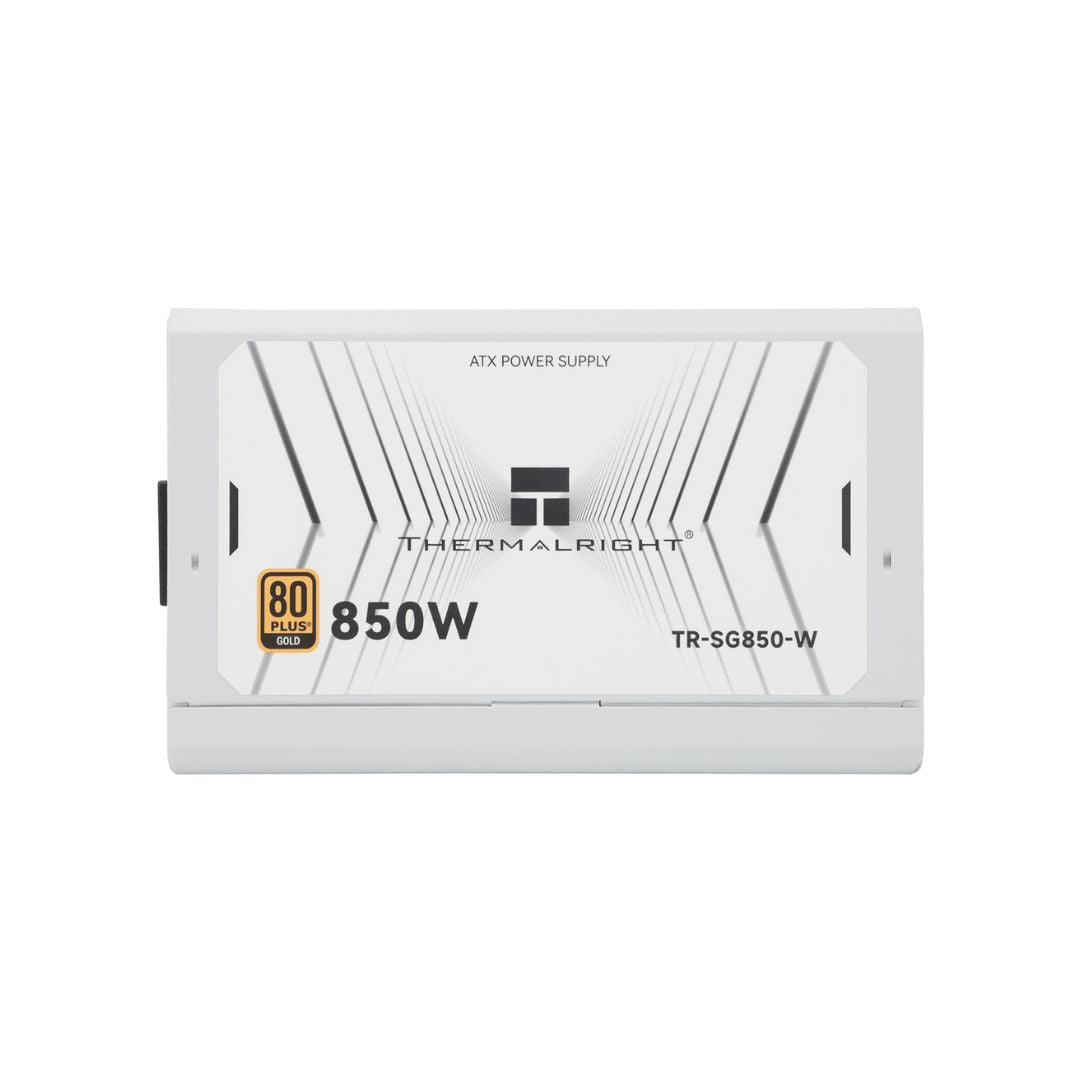

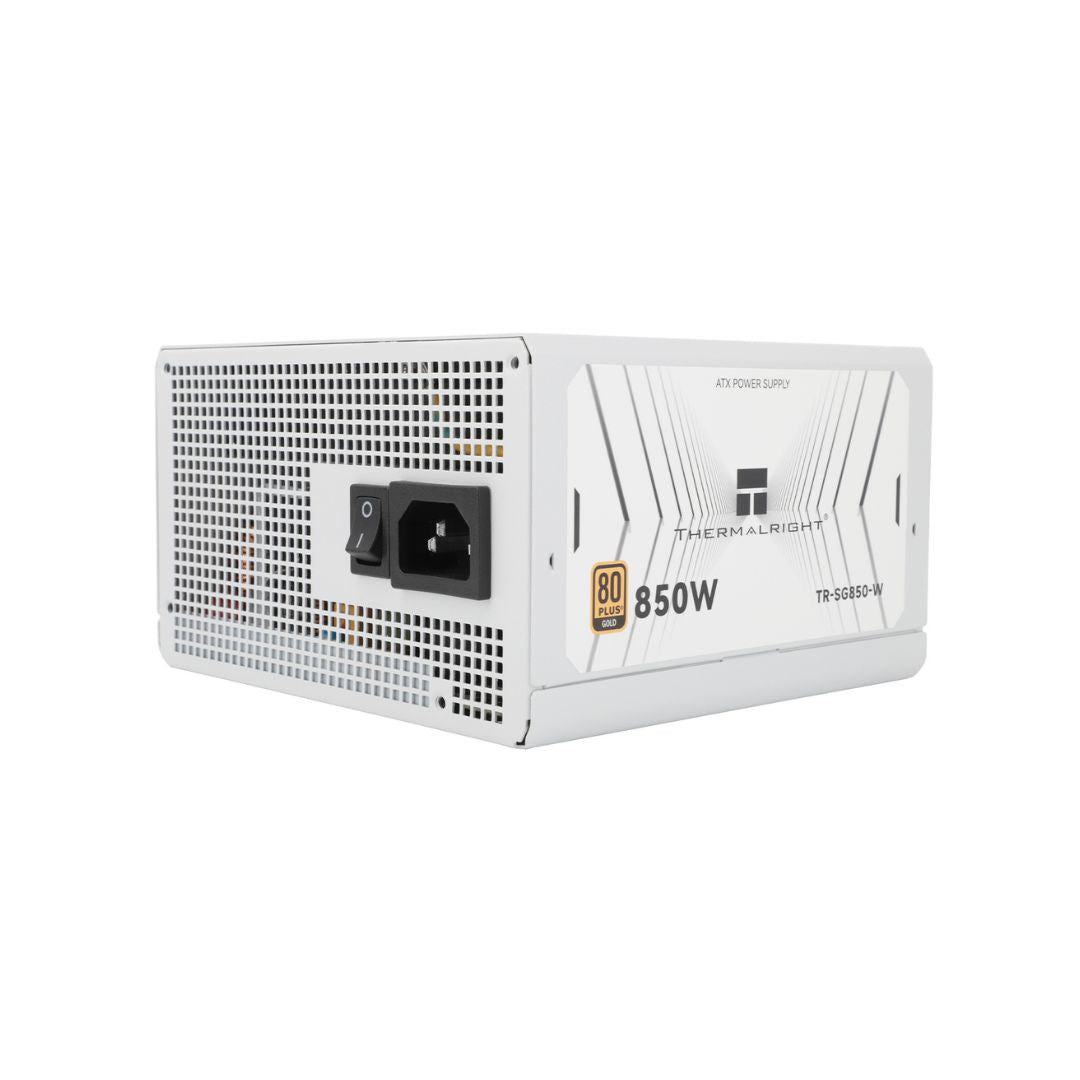

The Thermalright SG850S-W delivers reliable 850W power with 80+ Gold efficiency, ideal for high-performance gaming and workstation builds. Its compact 140mm design fits most cases, while Japanese capacitors and active PFC ensure stable operation. With comprehensive protections and a whisper-quiet 120mm fan, this PSU provides dependable power for demanding systems.
Key Features
- 850W 80+ Gold efficiency for gaming and workstations
- Compact 140mm length fits most PC cases
- Japanese capacitors for enhanced stability

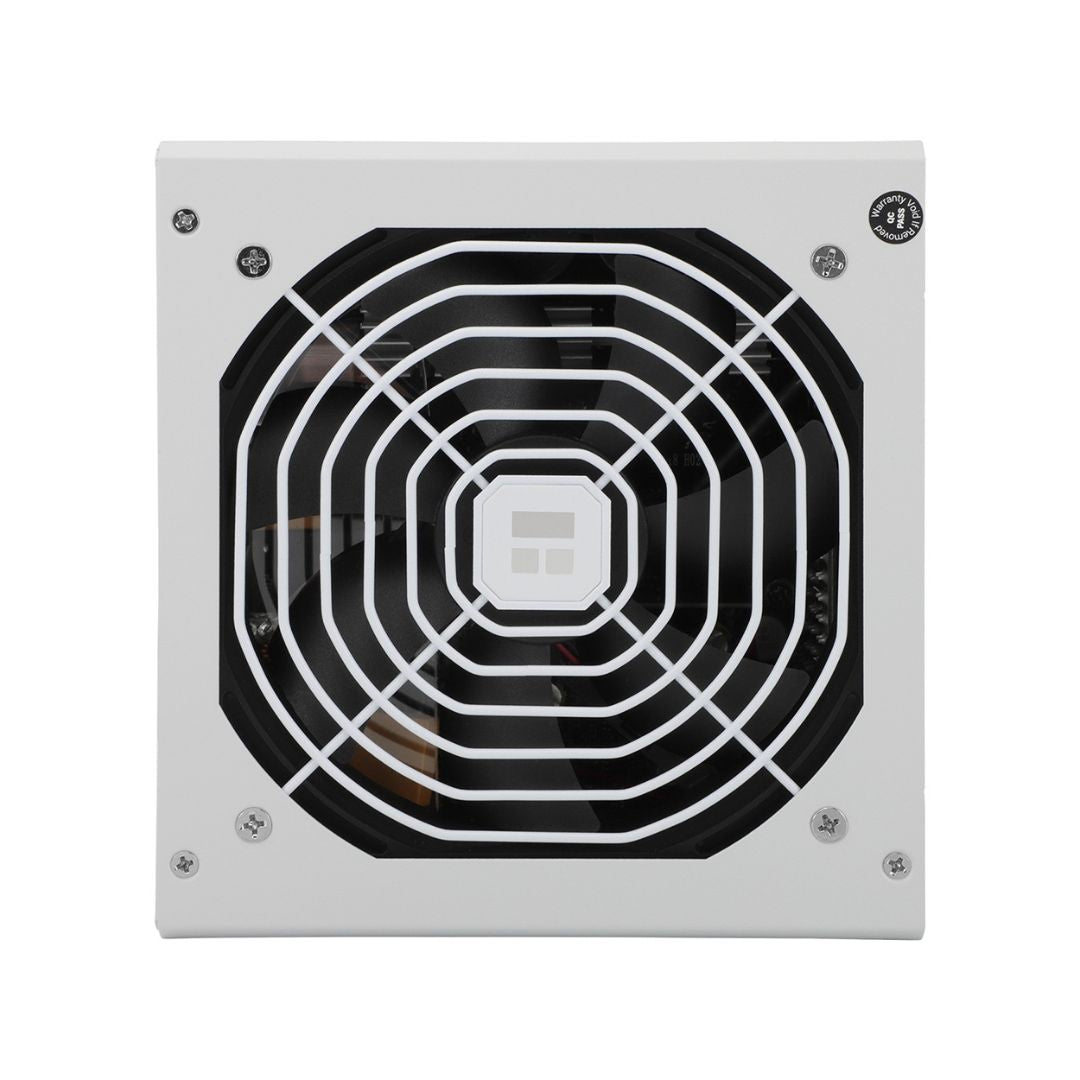

- 120mm hydraulic bearing fan, low-noise operation
- Comprehensive protections: OVP, UVP, OCP, OTP, SCP
- 5-year warranty, 100,000+ hour MTBF
Specifications
| Brand |
Thermalright |
| Wattage |
850W |
| Form Factor |
Standard ATX |
| Modular Design |
Non-modular |
| Cooling Type |
120mm hydraulic bearing fan |
| Input Voltage |
100-240V AC auto-ranging |
| Pfc Type |
Active PFC |
| Protections |
OVP, UVP, OCP, OPP, SCP, OTP |
| Connectors |
1x 24-pin ATX, 2x 4+4-pin EPS12V, 4x 6+2-pin PCIe, 8x SATA, 3x Molex |
| Dimensions Mm |
140 x 150 x 86 |
| Weight Kg |
1.6 |
| Mtbf Hours |
100,000+ |
| Warranty Years |
5 |
